Data Localization

GF Localization enables healthcare professionals to find care providers (custodians) that hold relevant data for a patient. The Nationale Verwijs Index (NVI) stores one Patient resource per patient, custodian and registering client. A data user searches by the patient's NVI pseudonym and optional custodian properties, and receives only custodians that return an allow Authorization Decision.

Note: This page is based on version 0.9.0 of the Functional and Technical Design Documents of the Generic Function Localization (Generieke Functie Lokalisatie). The current and previous versions of this document are available at www.generiekefuncties.nl/lokalisatie.

Scope

This page specifies:

• how a custodian registers and maintains its patients at the NVI;
• how a data user searches the NVI for custodians that hold relevant data;
• how the NVI asks each custodian for an Authorization Decision before it returns that custodian.

This page does not specify:

• how the data user retrieves the data itself. The data user requests data directly from the custodian's FHIR API, which authorizes each request;
• how pseudonyms are derived. See GF Pseudonymization;
• how custodians, their Endpoints and their healthcare services are published. See GF Care Service Directory;
• Authorization Decisions for non-FHIR APIs, such as DICOM.

Terminology

When this page says that a custodian or data user sends a request, its Localization Registration Client or Localization Search Client sends it.

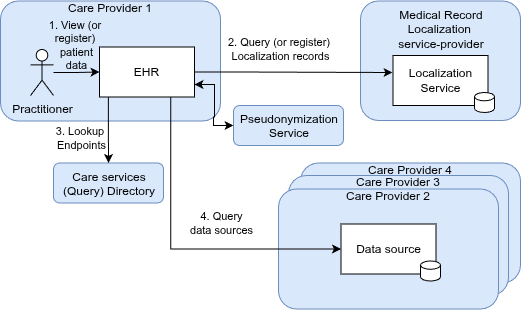

Solution overview

Custodians first register patients whose data they manage:

1. The custodian generates a random blinding factor. It uses this factor in an oblivious pseudorandom function (OPRF) exchange with the PRS to obtain an encrypted, NVI-scoped pseudonym for the patient.
2. The custodian registers a Patient resource for that patient and custodian at the NVI.

A data user can then discover relevant custodians:

1. The data user determines the custodian search criteria and data categories relevant to the care need.
2. The data user generates a random blinding factor and uses it in an OPRF exchange with the PRS to obtain the patient's encrypted, NVI-scoped pseudonym.
3. The data user queries the NVI for the patient, specifying which custodians are relevant by properties such as care provider ID (URA), care provider type, Endpoint payload type, or healthcare-service type.
4. The NVI selects relevant custodians by matching the query against its local Care Service Directory replica.
5. The NVI searches its registrations for Patient resources that match the patient's pseudonym and belong to one of the selected custodians.
6. For each matching custodian, the NVI requests an Authorization Decision. The NVI returns only custodians with an allow Authorization Decision.
7. The data user discovers the custodians' data Endpoints through the Care Service Directory and requests data directly from them. Custodians authorize each data request independently.

Actors

NVI

The NVI SHALL implement these FHIR capabilities. It is the server for GF-LOC-1 to GF-LOC-4, and the client for GF-LOC-5.

Localization Registration Client

The Localization Registration Client acts for a custodian. It SHALL support GF-LOC-1 to GF-LOC-3, and SHALL follow the Registration lifecycle.

Localization Search Client

The Localization Search Client acts for a data user. It SHALL support GF-LOC-4.

One system, such as an EHR, MAY implement both client actors.

Custodian Server

The Custodian Server is the custodian's FHIR API, registered in the Care Service Directory. It serves the custodian's data, and is the server for GF-LOC-5.

Pseudonym Registration Service

The Pseudonym Registration Service (PRS) provides OPRF evaluations used by clients to derive recipient-scoped pseudonyms from patient identifiers using HKDF and OPRF protocols. See GF Pseudonymization for the full specification and the reference implementation.

Transactions

GF-LOC-1: Register Patient

The Localization Registration Client registers that a custodian holds data for a patient.

Artifacts. CapabilityStatement (create interaction), Patient profile, Patient example.

Request. The client SHALL register with a conditional create, so a retry never creates a second registration:

POST [base]/Patient
If-None-Exist: identifier=[custodian-assigned identifier]&_source=urn:generiekefuncties:nvi:client-id:{client_id}

Each registered Patient SHALL contain:

• the NVI pseudonym in identifier with system http://generiekefuncties.nl/nvi/identifier;
• the custodian-assigned Patient identifier, with the custodian as its Identifier.assigner;
• the custodian's ID in managingOrganization.identifier;
• the registering OAuth client_id represented as a URI in meta.source, using the form urn:generiekefuncties:nvi:client-id:{client_id}.

The custodian-assigned identifier SHALL be accepted as the patient search value at the custodian's FHIR Endpoint.

NVI pseudonym. Before registering, the client SHALL obtain the NVI pseudonym from the Pseudonym Registration Service (PRS). The client packages the JWE and blind_factor together as a JSON object:

{
  "evaluated_output": "<JWE compact serialization>",
  "blind_factor": "<base64url-encoded blind_factor>"
}

The client places this object, base64url-encoded, in the NVI Patient.identifier value. The NVI decrypts and unblinds it before storing the resulting pseudonym. See the Patient example.

Response.

For other errors, see Error handling.

GF-LOC-2: Delete Patient

The Localization Registration Client deletes a registration.

Artifacts. CapabilityStatement (delete interaction).

Request.

DELETE [base]/Patient/[id]

Response.

The NVI does not support updates. To change a registration, for example after a new custodian-assigned identifier or a patient merge, the client SHALL delete the registration and register a new one.

GF-LOC-3: Retrieve Registrations

The Localization Registration Client retrieves the registrations it made, for record maintenance.

Artifacts. CapabilityStatement (search-type interaction, _source search parameter), Patient profile.

Request.

GET [base]/Patient?_source=urn:generiekefuncties:nvi:client-id:{client_id}

Response. 200 OK with a searchset Bundle of the complete Patient resources registered by this client, including the custodian-assigned identifier. The client SHALL follow every next link until there is none.

This response is separate from the GF-LOC-4 response, which SHALL NOT include the custodian-assigned identifier.

GF-LOC-4: Search Localization

The Localization Search Client searches for custodians that hold relevant data for a patient, for a data user.

Artifacts. CapabilityStatement (search-type interaction, identifier and organization search parameters), Search context.

Request. The client SHALL search using POST [base]/Patient/_search with Content-Type: application/x-www-form-urlencoded, so the patient pseudonym and search context are not exposed in URLs or access logs. The identifier parameter SHALL identify the NVI pseudonym. It MAY be combined with these standard FHIR searches:

• organization:identifier: custodian Organization identifier(s) (URA);
• organization.type: custodian Organization type;
• organization.endpoint.payload-type: payload type of an Endpoint belonging to the custodian;
• organization._has:HealthcareService:organization:service-type: type of a HealthcareService provided by the custodian.

organization:identifier uses the standard reference :identifier modifier to match the identifier carried by Patient.managingOrganization. This is different from organization.identifier, which chains to the identifier of a referenced Organization resource. The NL GF Data Localization Patient profile carries the URA on managingOrganization.identifier and prohibits managingOrganization.reference, so these forms are not interchangeable for profile-conformant registrations.

The filters use standard chained or reverse-chained parameters. Organization.endpoint can only refer to an Endpoint, so the Endpoint chain needs no type qualifier. The NVI SHALL also accept the equivalent type-qualified form organization.endpoint:Endpoint.payload-type. The NVI SHALL resolve the managingOrganization URA against its Care Service Directory replica when evaluating these filters. Implementations SHALL support organization:identifier for the profile's identifier-only reference, including when the underlying FHIR server does not support that standard modifier natively.

Search parameters are combined with AND; comma-separated values within a parameter are combined with OR. The data user is identified from the access token's authorization_details object, never from search parameters.

Example: a patient held by any of custodian ids 123, 456, 789, or 012, where the care provider is type 8610, has an Endpoint supporting medicationRequest, and provides cardiology services:

POST [base]/Patient/_search HTTP/1.1
Authorization: [localization client access token]
Content-Type: application/x-www-form-urlencoded

identifier=http://generiekefuncties.nl/nvi/identifier|{NVI-patient-identifier}
&organization:identifier=urn:oid:2.16.528.1.1007.3.3|123,urn:oid:2.16.528.1.1007.3.3|456,urn:oid:2.16.528.1.1007.3.3|789,urn:oid:2.16.528.1.1007.3.3|012
&organization.type=https://www.cbs.nl/standaard-bedrijfsindeling|8610
&organization.endpoint.payload-type=http://fhir.generiekefuncties.nl/CodeSystem/nl-gf-data-categories-cs|medicationRequest
&organization._has:HealthcareService:organization:service-type=http://fhir.generiekefuncties.nl/CodeSystem/nl-gf-zorgvragen-cs|msz.cardiologie

{NVI-patient-identifier} is the base64url-encoded PRS object described under GF-LOC-1. The NVI decrypts and unblinds it to find matching Patient resources.

Processing. The NVI SHALL:

1. select relevant custodians by matching the search criteria, such as care provider ID (URA), care provider type, Endpoint payload type, or healthcare-service type, against its Care Service Directory replica;
2. search its registrations for Patient resources that match the NVI pseudonym and belong to one of the selected custodians;
3. request an Authorization Decision (GF-LOC-5) from each matching custodian;
4. return only Patient search results for which the decision is allow, omitting all Patient.identifier values and meta.source.

Response. 200 OK with a searchset Bundle containing Patient projections for custodians that match the search context and received an allow decision. These projections are marked with the SUBSETTED tag. For privacy, the NVI omits all Patient.identifier values and meta.source; the projections are not complete instances of the registration profile and SHALL NOT be used to update registrations.

The response SHALL NOT reveal whether a custodian was omitted because it had no matching record, did not match the search context, received a deny decision, or could not be reached.

Example response:

{
  "resourceType": "Bundle",
  "type": "searchset",
  "total": 1,
  "entry": [
    {
      "fullUrl": "https://nvi.example.org/fhir/Patient/9b6e3c1a-2f4d-4c8e-9a71-5d0f3b2e7c44",
      "resource": {
        "resourceType": "Patient",
        "id": "9b6e3c1a-2f4d-4c8e-9a71-5d0f3b2e7c44",
        "meta": {
          "tag": [
            {
              "system": "http://terminology.hl7.org/CodeSystem/v3-ObservationValue",
              "code": "SUBSETTED"
            }
          ]
        },
        "managingOrganization": {
          "identifier": {
            "system": "urn:oid:2.16.528.1.1007.3.3",
            "value": "123"
          }
        }
      },
      "search": {
        "mode": "match"
      }
    }
  ]
}

GF-LOC-5: Authorization Decision

For each matching custodian, the NVI asks whether the data user may access the custodian's data for the patient.

Artifacts. NL GF Data Categories CodeSystem. There is no Custodian Server CapabilityStatement yet (see Open issues).

Request. The NVI sends a HEAD request to the custodian's existing FHIR API. The requested data categories are the values of organization.endpoint.payload-type in the search. When the search specifies data categories, the NVI sends one request for each resource type of those categories. When it does not, the NVI sends one request on Patient:

HEAD [fhir-base-url]/[fhir-resourcetype]?patient.identifier=[custodian-assigned identifier]

• [fhir-base-url]: the address of an active, in-period hl7-fhir-rest Endpoint in the Care Service Directory replica. When the search specifies custodian Endpoint payload types, the Endpoint's payloadType SHALL match at least one of these types.
• [fhir-resourcetype]: the FHIR resource type and search parameters mapped to the requested category by the path-query-param property of the NL GF Data Categories CodeSystem, such as MedicationDispense, MedicationAdministration, MedicationStatement, and Immunization for code MedicationUse. If no data category is specified, the resource type Patient is used.
• [custodian-assigned identifier]: the custodian-assigned patient identifier in the Patient.

For a resource type of Patient, use HEAD [fhir-base-url]/Patient?identifier=[custodian-assigned identifier] instead of patient.identifier.

The request carries an access token whose authorization_details identifies the care provider and practitioner acting as the data user. The NVI is the acting party (the OAuth client). See Security.

Example:

HEAD https://fhir.datahouder-123.example/fhir/ImagingStudy?patient.identifier=https://fhir.datahouder-123.example/identifier/patient|9fd244dc-6b35-4a7d-843d-ac77591cb14d HTTP/1.1
Authorization: [access token]

Custodian Server requirements. For an Authorization Decision, the Custodian Server SHALL:

• support HEAD requests on the relevant FHIR search interactions for each data category;
• accept multiple requests for the same patient within one search, one for each resource type of the requested data categories;
• identify the patient by the custodian-assigned identifier alone, without the BSN or NVI pseudonym;
• accept an access token that identifies the data user and has the NVI as acting party;
• evaluate the request using the data user's authorization policy, including consent or access restrictions;
• respond with 200 OK for allow or 204 No Content for deny;
• respond within 1 second.

NVI processing. The NVI treats 200 OK as allow. It treats any other status, and any response that arrives after 1 second, as deny. In addition:

• The NVI SHALL include a custodian when at least one of its requests returns allow.
• Decisions SHALL only be used for the current search and SHALL NOT be cached.

An allow decision does not replace authorization of the actual data request. The custodian authorizes every subsequent request because access policies can change.

Registration lifecycle

The registration key is the combination of the custodian's ID (managingOrganization.identifier), the custodian-assigned identifier (system|value) and the registering client (meta.source). After unblinding, the NVI also treats the combination of custodian ID, NVI pseudonym and registering client as unique.

A custodian MAY use more than one Localization Registration Client, for example an EHR and a PACS, or an old and a new system during a migration. Each client then maintains only its own registrations, so one client never deletes a registration that another client made. A custodian with one client needs nothing extra. The registering client is never returned to data users and does not affect search results.

Register. The Localization Registration Client SHALL register a patient (GF-LOC-1) when both conditions hold:

• the custodian holds data for the patient in a data category it exposes;
• the custodian is permitted to register the patient.

One registration covers all data categories of that custodian. The client SHALL register immediately after both conditions hold, as part of the event that causes them. A client that cannot register on events SHALL register within 24 hours.

Delete. The client SHALL delete the registration (GF-LOC-2) when either condition no longer holds. For example, the retention period has ended, or the record has moved to another care provider.

Reconciliation

Registration on events can miss changes, for example after an outage or a failed request. The client SHALL therefore reconcile its registrations with the custodian's records at least once a week.

A missing registration is the harmful case: data users cannot find the custodian's data. A stale registration only costs an extra Authorization Decision, because the custodian answers deny.

The client SHALL perform these steps in this order:

1. Fetch the NVI list. Retrieve all registrations made by this client (GF-LOC-3). For each Patient, record its id and its registration key. This is list N.
2. Build the local list. Only after step 1 is complete, list the registration key of every patient that meets both registration conditions. This is list L.
3. Register missing patients. For each key in L that is not in N, obtain a new NVI pseudonym from the PRS and register the patient (GF-LOC-1).
4. Delete stale registrations. For each key in N that is not in L, delete the registration (GF-LOC-2).
5. Delete duplicates. For each key that occurs more than once in N, keep one registration and delete the others.
6. Handle errors. Treat 404 Not Found on a delete as success. Do not stop the run on a failed request; the next run retries it.

Step 1 SHALL complete before step 2 starts. A patient registered on an event during the run is then in L, and step 3 does nothing for it because of the conditional create. In the opposite order, that patient could be in N but not in L, and step 4 would delete it by mistake.

sequenceDiagram
    participant client as Localization Registration Client
    participant records as Custodian records
    participant prs as Pseudonym Registration Service
    participant nvi as NVI

    client->>nvi: GF-LOC-3: GET /Patient?_source=[client URI]
    nvi-->>client: searchset Bundle (follow next links)
    client->>client: Build list N (id, registration key)
    client->>records: Select patients that meet both registration conditions
    records-->>client: Build list L (registration key)
    loop for each key in L, not in N
        client->>prs: OPRF exchange with random blinding factor
        prs-->>client: Encrypted, NVI-scoped pseudonym
        client->>nvi: GF-LOC-1: POST /Patient<br/>If-None-Exist
        nvi-->>client: 201 Created, or 200 OK if it exists
    end
    loop for each key in N, not in L, and each duplicate
        client->>nvi: GF-LOC-2: DELETE /Patient/[id]
        nvi-->>client: 200 OK, 204 No Content or 404 Not Found
    end

Error handling

The NVI SHOULD return an OperationOutcome that describes the error for every 4xx and 5xx response in GF-LOC-1 to GF-LOC-4.

The NVI SHALL NOT answer a failed search with an empty Bundle. When the NVI itself cannot process a search, it returns a 5xx status.

An unreachable custodian is not an NVI failure. The NVI treats it as deny, does not retry the Authorization Decision within the same search, and returns the search result without that custodian. As a result, a data user cannot tell an empty result from a result in which custodians were unreachable or denied access. This is by design: a timeout only occurs for a custodian that holds a registration for the patient, so reporting it would reveal that the registration exists.

Data models

Data Localization Patient profile

The NL GF Data Localization Patient profile uses one Patient resource per patient, custodian and registering client:

• Patient.identifier contains the NVI pseudonym and a custodian-assigned patient identifier;
• Patient.managingOrganization identifies the custodian by URA (OID 2.16.528.1.1007.3.3);
• Patient.meta.source identifies the registering OAuth client.

The custodian-assigned identifier SHALL be unique within the custodian's identifier namespace and accepted by its FHIR Endpoint as the patient search value. It SHALL NOT be the BSN and SHALL NOT be derivable from the BSN. The NVI stores it to request Authorization Decisions from that custodian. It SHALL NOT return it in data-user search responses, but MAY return it to the authorized Localization Registration Client for record maintenance. The combination of the NVI pseudonym, the custodian URA and the OAuth client id SHALL be unique.

Search context

The search context (zoekcontext) consists of properties of custodians that are relevant to the data user. The following properties are supported:

FHIR R4 defines these standard search parameters and chained paths. The NVI SHALL support the listed paths and resolve managingOrganization identifiers against the Care Service Directory replica.

Security

Authentication and Authorization

See GF Pseudonymization for PRS authentication requirements.

The Localization Search Client's access token SHALL include care provider and practitioner details in the authorization_details object (as required for EU-cross-border exchange by EHDS Implementing Act 2026/2099, Annex 1).

For an Authorization Decision, the care provider and practitioner details are, again, in the authorization_details object, but now the NVI is the acting party (the OAuth client). For other authentication, transport-layer and access-token details, see GF Authentication.

Privacy considerations

• Disclosure to custodians: an Authorization Decision reveals that the data user is seeking data about a patient. Requests are limited to custodians matching the search context.
• Patient identifier privacy: the NVI sends the custodian-assigned identifier only to its custodian for Authorization Decision requests and SHALL NOT include it in search responses to data users. The custodian does not receive the BSN, NVI pseudonym, or broader search context.
• No reason leakage: the NVI returns only allowed Patient projections and does not reveal whether a custodian was absent, filtered out, denied, or unreachable.
• Fail closed: every Authorization Decision other than 200 OK, including timeouts, is deny.

Example Use Cases

Use case: Registering a patient

A custodian registers a Patient resource for each patient it holds. The NVI identifier carries the PRS result envelope; the resource also contains the custodian-assigned identifier, the custodian ID, and the registering OAuth client URI.

sequenceDiagram
    actor doctor as Practitioner
    participant ehr as EHR / PACS<br/>Localization Registration Client
    participant prs as Pseudonym Registration Service
    participant NVI as NVI

    doctor->>ehr: Register patient data
    ehr->>ehr: Derive pseudonym from BSN<br/>and blind it with a random blinding factor
    ehr->>prs: OPRF exchange with blinded input
    prs-->>ehr: Encrypted, NVI-scoped pseudonym (JWE)
    ehr->>ehr: Create Patient with JWE and blinding factor,<br/>custodian-assigned identifier,<br/>managingOrganization and meta.source
    ehr->>NVI: GF-LOC-1: POST /Patient<br/>If-None-Exist
    NVI->>NVI: Decrypt and unblind NVI pseudonym
    NVI-->>ehr: 201 Created, or 200 OK if it exists

Use case: Searching for imaging data

Dr. Smith's EHR searches for a patient's imaging data at organizations offering cardiology services. The NVI uses the patient pseudonym and search context to select candidates, then returns only custodians with an allow decision.

sequenceDiagram
    actor doctor as Practitioner<br/>Data user
    participant ehr as EHR<br/>Localization Search Client
    participant prs as Pseudonym Registration Service
    participant nvi as NVI
    participant holder as Custodian Server

    doctor->>ehr: Request patient imaging data
    ehr->>ehr: Derive pseudonym from BSN<br/>and blind it with a random blinding factor
    ehr->>prs: OPRF exchange with blinded input
    prs-->>ehr: Encrypted, NVI-scoped pseudonym (JWE)
    ehr->>nvi: GF-LOC-4: POST /Patient/_search<br/>identifier + organization chains
    nvi->>nvi: Select custodians in<br/>Care Service Directory replica
    nvi->>nvi: Match patient registrations<br/>of selected custodians
    loop for each matching custodian and resource type
        nvi->>holder: GF-LOC-5: HEAD mapped data search<br/>using custodian-assigned identifier
        holder->>holder: Evaluate Authorization Decision
        holder-->>nvi: 200 OK allow, or 204 No Content deny
    end
    nvi-->>ehr: searchset Bundle with allowed Patient projections
    ehr->>holder: Request data from returned custodians
    holder-->>ehr: Authorized clinical data
    ehr-->>doctor: Display available data

Use case: Retrieving registrations by Localization Registration Client

GET [base]/Patient?_source=urn:generiekefuncties:nvi:client-id:ehr-client-org2

The NVI returns a searchset Bundle of matching Patient resources to the authorized Localization Registration Client for record maintenance (GF-LOC-3). This maintenance interaction is separate from data-user search responses, which SHALL NOT include the custodian-assigned identifier.

Roadmap for GF Localization

Open issues

• Token profile for the NVI acting on behalf of the data user, aligned with GF Authentication and GF Authorization.
• Minimum specificity of a search context.
• A CapabilityStatement for the Custodian Server, specifying HEAD support and Authorization Decision responses.
• Specifying Authorization Decision mechanisms for non-FHIR APIs or data categories (e.g. DICOM).
